Practical Engineering Guide: How to Calculate the Load on a Crane Slewing Bearing

In crane design and operation, the slewing bearing plays a decisive role in ensuring safety, stability, and long-term performance. Many engineers and procurement managers focus on lifting capacity and boom length, but they often underestimate how critical accurate load calculation is for slewing bearings. If you select the wrong bearing or miscalculate the load, the result can be premature failure, excessive wear, or even catastrophic accidents.

This guide explains the slewing bearing load calculation formula for cranes in a clear, practical way. It combines engineering logic with real-world application experience so that readers can confidently apply the method in design, selection, and maintenance.

What Is a Slewing Bearing and Why Load Calculation Matters

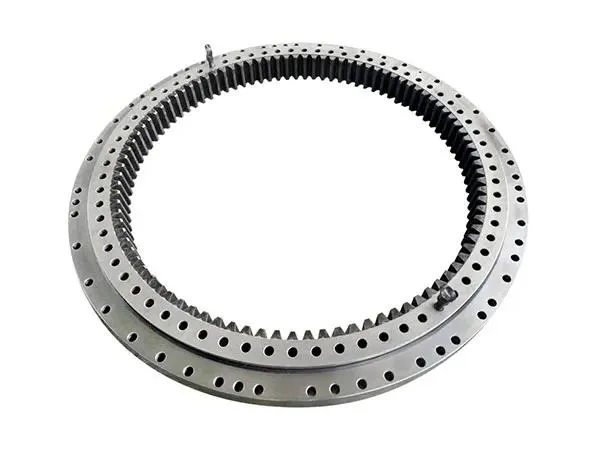

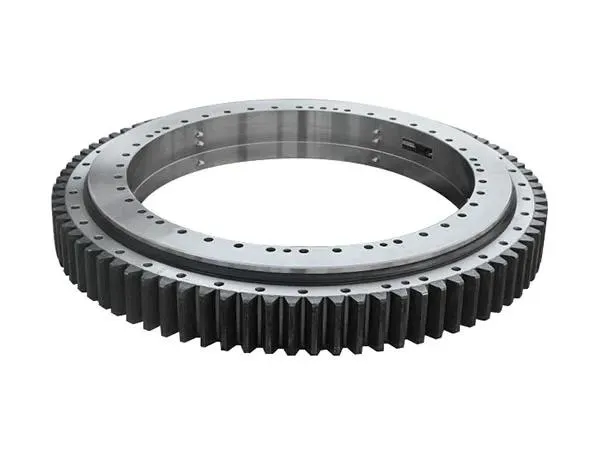

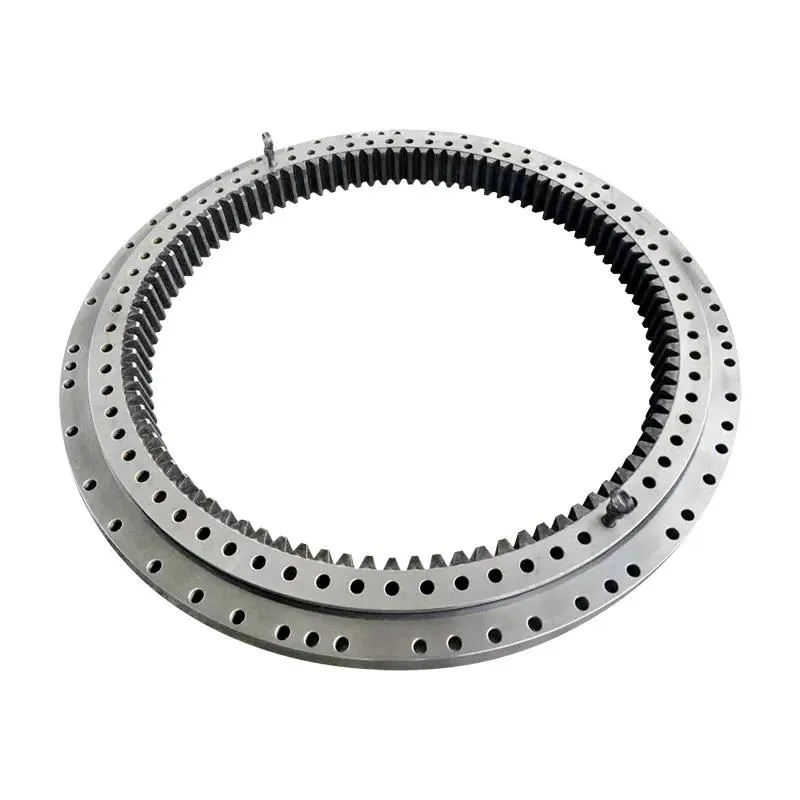

A slewing bearing is a large-diameter rolling element bearing that simultaneously carries axial force, radial force, and tilting moment. Cranes rely on slewing bearings to rotate the superstructure smoothly while supporting dynamic loads.

Accurate load calculation matters for three key reasons:

It ensures the bearing can handle combined loads without failure

It extends service life and reduces maintenance costs

It helps engineers select the correct bearing model and size

Without proper calculation, even a high-quality bearing cannot perform reliably under real working conditions.

Understanding the Three Core Loads in Crane Applications

Before discussing formulas, it is essential to understand the three types of loads acting on a slewing bearing:

1. Axial Load (Fa)

Axial load refers to the vertical force acting along the axis of rotation. In cranes, this includes:

Weight of the superstructure

Lifted load

Additional attachments

2. Radial Load (Fr)

Radial load acts perpendicular to the axis. It mainly comes from:

Wind force

Horizontal inertia during slewing

Structural misalignment

3. Tilting Moment (M)

Tilting moment is the most critical factor in crane applications. It results from the load acting at a distance from the rotation center.

Typical contributors include:

Boom length and angle

Load radius

Offset center of gravity

Slewing Bearing Load Calculation Formula

In practical engineering, the combined load condition is simplified into an equivalent load for bearing selection. The commonly used calculation approach is:

Equivalent Dynamic Load (P):

P=X⋅Fr+Y⋅Fa

Where:

P = Equivalent dynamic load

Fr = Radial load

Fa = Axial load

X, Y = Load factors (determined by bearing type and manufacturer data)

However, for cranes, the tilting moment must also be considered. Therefore, engineers often convert the moment into an equivalent axial load:

Fm=D/M

Where:

Fm = Equivalent axial force from moment

M = Tilting moment

D = Pitch diameter of the slewing bearing

Then the total axial load becomes:

Fa,total=Fa+Fm

Finally, the equivalent load is recalculated using:

P=X⋅Fr+Y⋅Fa,total

This method provides a realistic representation of the combined loading condition.

Step-by-Step Calculation Process

To make this easier to apply, here is a simplified step-by-step workflow:

Step 1: Determine Actual Loads

You should collect all relevant data:

Crane dead weight

Maximum lifting load

Boom length and working radius

Wind load and dynamic factors

Step 2: Calculate Tilting Moment

You calculate the moment using:

M=Load×Radius

Include safety factors and dynamic coefficients based on working conditions.

Step 3: Convert Moment into Equivalent Load

Use the bearing pitch diameter to convert moment into axial force.

Step 4: Apply Load Combination Formula

You calculate the equivalent dynamic load using the combined formula.

Step 5: Compare with Bearing Capacity

Finally, you compare the calculated load with the bearing’s rated capacity provided by the manufacturer.

Practical Example

Assume a crane lifts 10 tons at a radius of 5 meters.

Load = 100 kN

Radius = 5 m

Moment = 500 kN·m

Bearing pitch diameter = 2 m

Then:
Fm=2/500=250 kN

If the axial load is 120 kN:

Fa,total=120+250=370 kN

This result clearly shows that the tilting moment contributes more to the load than the direct axial force. Engineers who ignore this factor often underestimate the real stress on the bearing.

Key Factors That Influence Calculation Accuracy

Even with the correct formula, several factors can affect the result:

1. Dynamic Load Coefficient

Cranes rarely operate under static conditions. Acceleration, braking, and load swing introduce dynamic forces.

2. Load Distribution

Uneven load distribution can significantly increase local stress on rolling elements.

3. Installation Precision

Improper mounting surfaces can create additional internal forces.

4. Environmental Conditions

Temperature, dust, and corrosion can influence bearing performance and must be considered during selection.

Common Mistakes to Avoid

Many engineering failures come from avoidable errors:

Ignoring tilting moment in calculations

Using static load instead of dynamic load

Selecting bearings based only on price

Overlooking safety factors

A reliable design always prioritizes accurate calculation over cost reduction.

How to Select the Right Slewing Bearing

After completing the calculation, you should match the results with:

Static load rating

Dynamic load rating

Allowable tilting moment

Gear requirements (if applicable)

Working with an experienced manufacturer can significantly improve selection accuracy and reduce risk.

Conclusion

The slewing bearing load calculation formula for cranes is not just a theoretical exercise. It is a critical engineering process that directly affects safety, service life, and operational efficiency.

Engineers who understand how to correctly calculate axial load, radial load, and tilting moment can make better design decisions and avoid costly failures. By following a structured calculation method and considering real-world conditions, companies can improve crane reliability and gain a competitive advantage in the market.

If your project involves crane design, upgrading, or replacement of slewing bearings, it is worth investing time in proper load calculation. Accurate data leads to better selection, and better selection leads to long-term performance.
